How To Clean Homeright Finish Max Paint Sprayer

[su_spoiler title="Can chalkpaint be used?" icon="caret"]Yes. Make sure you strain the paint to remove any chunks of clay and thin your paint at 20 to 40 seconds run out time [/su_spoiler] [su_spoiler title="Do I need to remove the spray needle to clean the unit?" icon="caret"]The needle should not be removed for cleaning. Simply run warm, soapy water through the unit and use the included brush to clean the nozzle and needle. Also, make sure that paint does not dry in the two air holes on each side of the pickup tube. Overall, cleaning the Finish Max is easy and quick! I do remove the brass fiting and run cleam water over the needle.

STEP ONE:

[su_row][su_column size="1/2″ center="no" class=""]

CLEAN UP INSTRUCTIONS NOTE: Proper clean up the HomeRight Finish Max Paint Sprayer is essential to keep your sprayer in optimum working condition. Dried by-products act like glue and will cause moving parts to stick. Failure to properly clean your paint sprayer will damage the unit. Taking the time to clean your sprayer immediately after use will help your sprayer last longer and work correctly. If you are finished with the project and you won't be using the sprayer within the day, you must follow these instructions for proper cleanup. Never store the sprayer longer than 30 minutes without cleaning.

Unplug sprayer from the electrical outlet and pull the trigger on spray gun so material inside unit flows back into the container.
Empty any remaining (stain or paint) material from the container.
Fill container approximately 1/2 full with an appropriate cleaning solution. For latex, use warm soapy water; for oil-based, use a cleaning solution recommended by the material manufacturer.
Plug sprayer into an electrical outlet.
Press the switch of the sprayer until the cleaning solution passes through the spray nozzle for several seconds. (See Figure A.)
Remove the container and properly discard the cleaning solution.
Unplug the sprayer from the electrical outlet.

[/su_column]

[su_column size="1/2″ center="no" class=""][/su_column][/su_row]

[su_row][su_column size="1/2″ center="no" class=""]

STEP TWO:

CLEAN UP INSTRUCTIONS FOR THE HomeRight Finish Max Paint Sprayer SPRAY TIP
Use the brush (included) to complete the following steps.

Unplug sprayer from the electrical outlet and pull the trigger on spray gun so material inside unit flows back into the container.
Unscrew the container and discard any remaining cleaning solution.

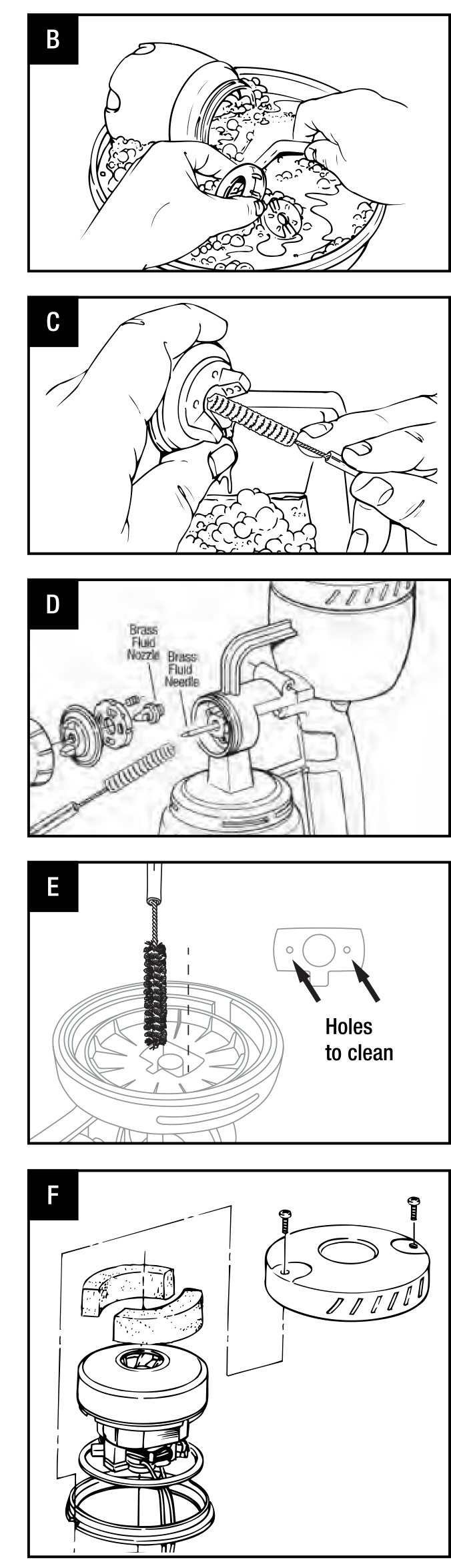

Remove the pickup tube from the sprayer and clean it with warm, soapy water.* (See Figure B.)
Unscrew the air cap ring, remove the winged spray cap and the inner spacer. Clean all three with warm, soapy water.* (See Figure C.)
Clean the sealing ring found between the container and the housing with warm, soapy water*.
Clean the Brass Fluid Nozzle housing and the unit with warm, soapy water.* Remove the Brass Fluid Nozzle by unscrewing and clean around the brass needle with the brush provided. (See Figure D.)
Remove foam splash guard. Clean holes on each side of pickup tube with the tip of the supplied brush. (See Figure E.)
Let the components dry thoroughly and reassemble the unit.
Store the unit. * If you've been using oil-based liquids, clean these parts with whatever the liquid manufacturer recommends (probably mineral spirits).

MAINTENANCE

Air filters should be inspected periodically. If it is excessively dirty, follow these steps to remove and replace: (Figure F.) 1. Keeping the HomeRight Finish Max Paint Sprayer upright at all times, remove two screws from the motor lid and remove the lid. 2. Replace filters (P/N C800982) and reinstall lid.

[/su_column]

[su_column size="1/2″ center="no" class=""]

HomeRight Finish Max Paint Sprayer layout [/su_column][/su_row]
